Task Logic

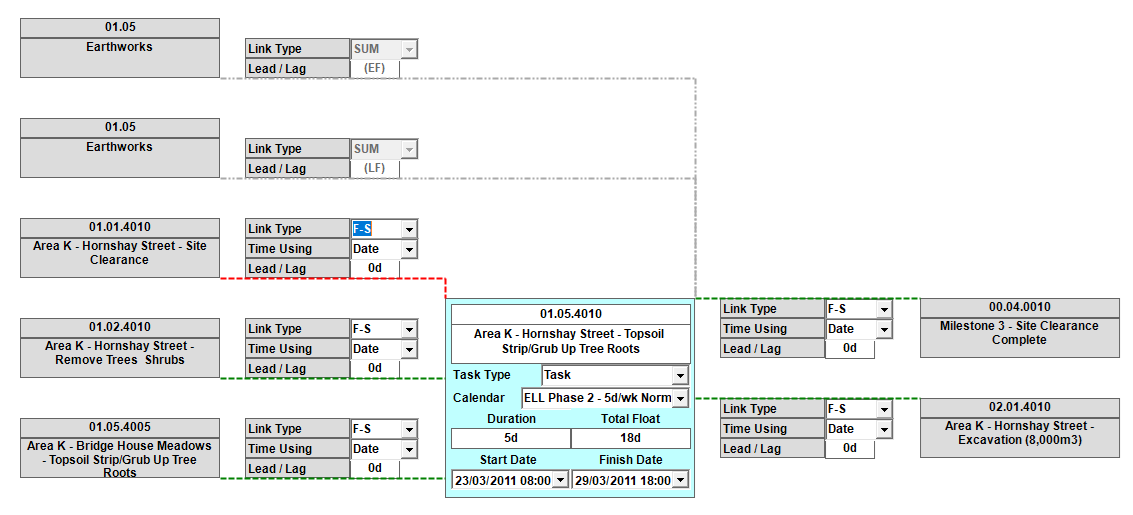

The Task Logic screen introduced in ChainLink 6 Release 16 has been enhanced to include all the Link data and displays the Link using the selected Line Type. Editable Link lines are show in green, which becomes red when selected, non-editable Link lines are shown in grey.

New Tasks can now be added to the project on this screen by clicking on the Add Task button on the toolbar.

A Task, complete with all it's Links, can be deleted from the project on this screen by clicking on the Delete Task button on the toolbar.

Links can be added by right mouse clicking on the Task ID or Task Name of the Task or Link and selecting 'Add Predecessor' or 'Add Successor' from the popup menu. The Task to Link from or Link to can be selected from the new Task Selector utility or a completely new Task can be added to form the start or end of the Link.

Links can be deleted by selecting a Link then right mouse clicking on the Task ID or Task Name of the Link and selecting 'Delete Link' from the popup menu.
